Quality components
- Steering wheel with carbon fiber finish, integrated alphanumeric display and quick release. The direct-drive motor provides steering force feedback with up to 5 Nm of torque.

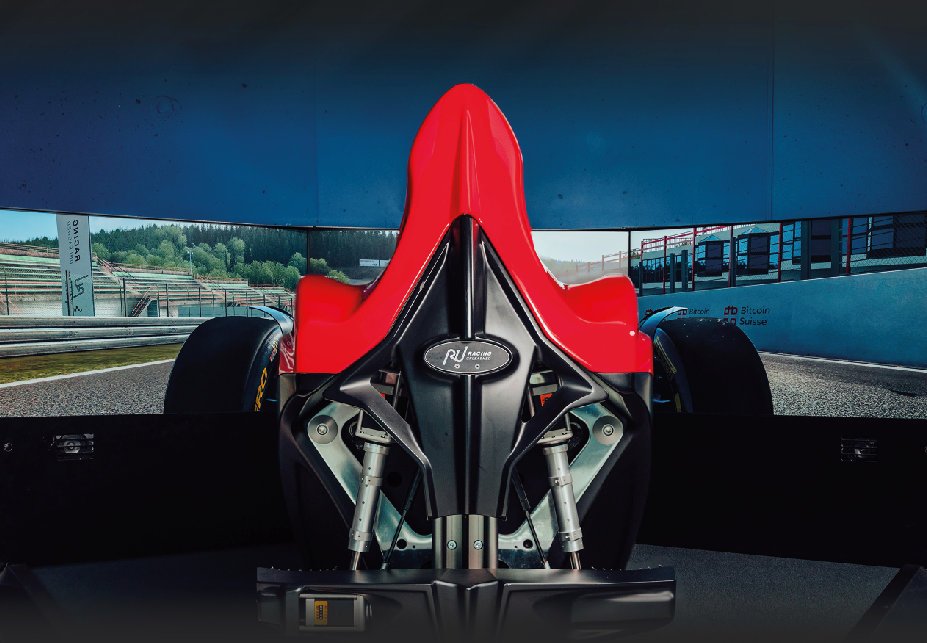

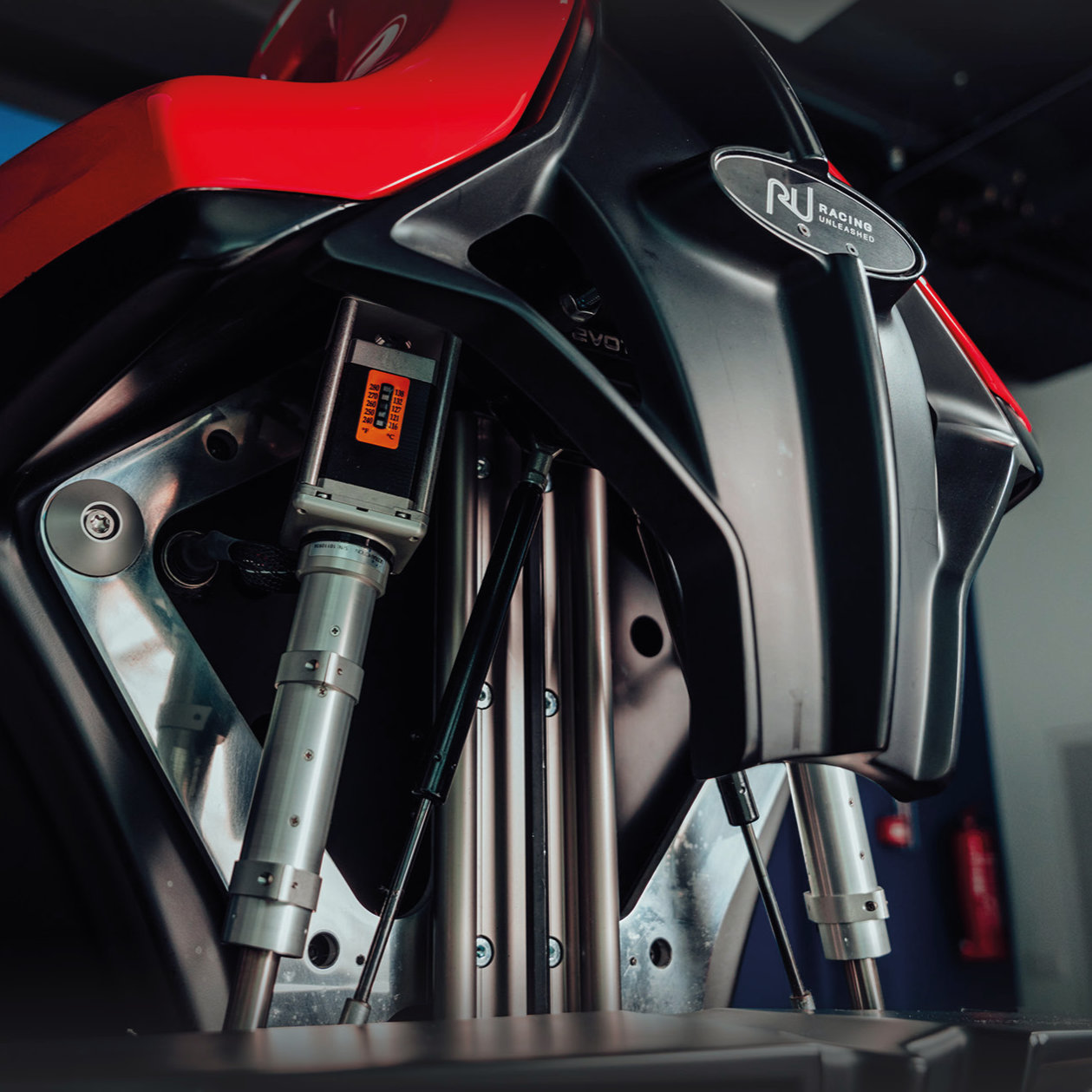

- Racing Unleashed’s proprietary 3DOF motion system with actuation on pitch, roll and yaw axes. Calibrated by a professional driver with Formula One experience. Industrial-grade electromechanical actuators with stepper motors. Wear parts replaced during factory regeneration before delivery.

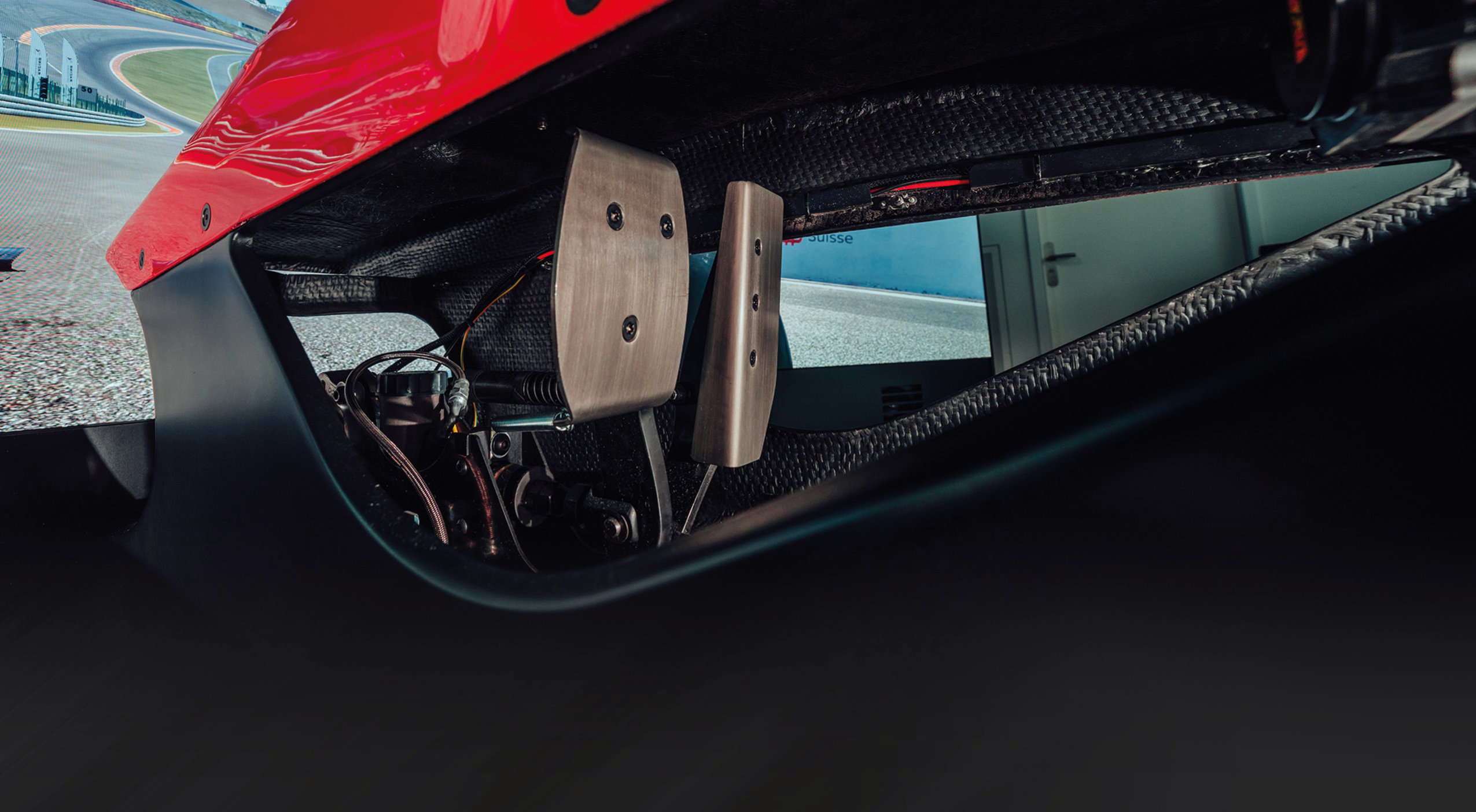

- Custom foot pedal for left-foot braking. Right foot on the accelerator. Brake pedal, equipped with hydraulic disc brake, provides realistic analog feel with high pedal stiffness.
Technical specifications.
Simulator Type Formula Simulator, Type 027
Condition Factory reconditioned, average age 2-4 years old

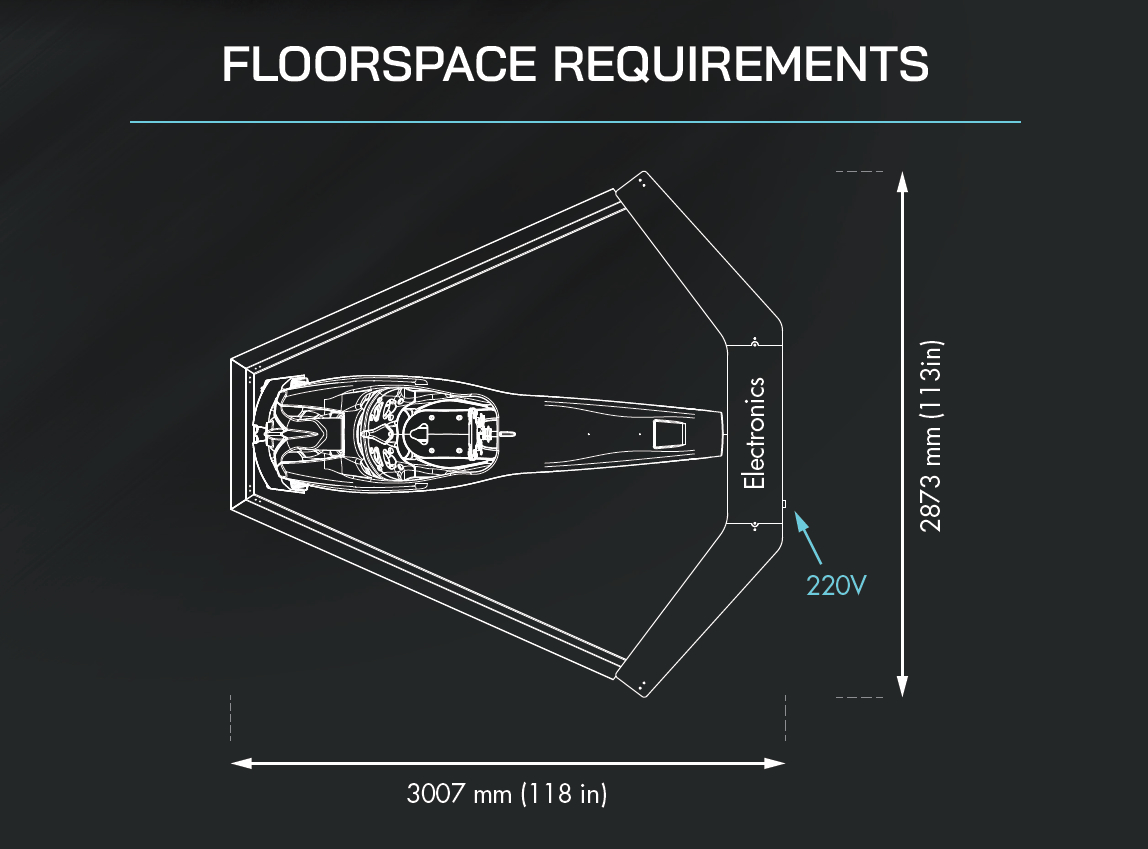

Dimensions (W x D x H) 3 x 3 x 1.4 m, external electronics rack
Weight 275 kg
Motion system 3 DOF (pitch, roll, yaw axes), proprietary system with electromechanical actuators (stepper motors)
Display system Triple 3 x 46″ HD screen, 60 Hz refresh rate, 120 degree field of view
Steering system Direct transmission, maximum torque 5 Nm
Steering wheel Carbon fiber effect, alphanumeric display, magnetic paddles
Pedals Adjustable pedals. Hydraulic circuit brake with single piston caliper, spring-loaded accelerator pedal
Sound system Built-in speakers, headphones
Control interface External keyboard with touchpad/tablet
Seat belts 5-point belts with actuators for brake force simulation
Assetto Corsa Pro simulation software (no other titles supported)
220V/10A or 110V/20A power requirements, peak consumption 1.3kW
Software and Content
for Simulation
Racing Unleashed’s Formula simulator uses Assetto Corsa Pro as its simulation software. This software is considered a standard in sim racing, allowing a very realistic simulation of car physics. Each year, Racing Unleashed releases a virtual car model that closely follows the regulations of the current Formula One season. Each simulator includes a lifetime license of Assetto Corsa Pro with a selection of circuits and cars. Virtual car liveries can be customized at the customer’s request to represent a specific car or sponsor. As an additional service, Racing Unleashed can create custom laser-scanned circuits to provide an extremely realistic driving experience.
The supply includes.
- 1 x Racing Unleashed Formula Simulator type “O27”
- Reconditioned to resemble 3 years of use in Racing Unleashed racing lounges
- Differences from the “O28”-type simulator:
- Racing Unleashed 3DOF motion system with stepper motor actuators
- PC with AMD Radeon RX 5700 XT GPU or similar
- Steering wheel with linear actuator motion system and stepper motor
- Steering with alphanumeric display NNN max. torque
- Directional seat with adjustable height, 5 mm max.
- Only compatible with Assetto Corsa Pro
- CE certificate for sale in Europe
Not included:
- Transportation and installation (depending on customer’s location)
