Quality components

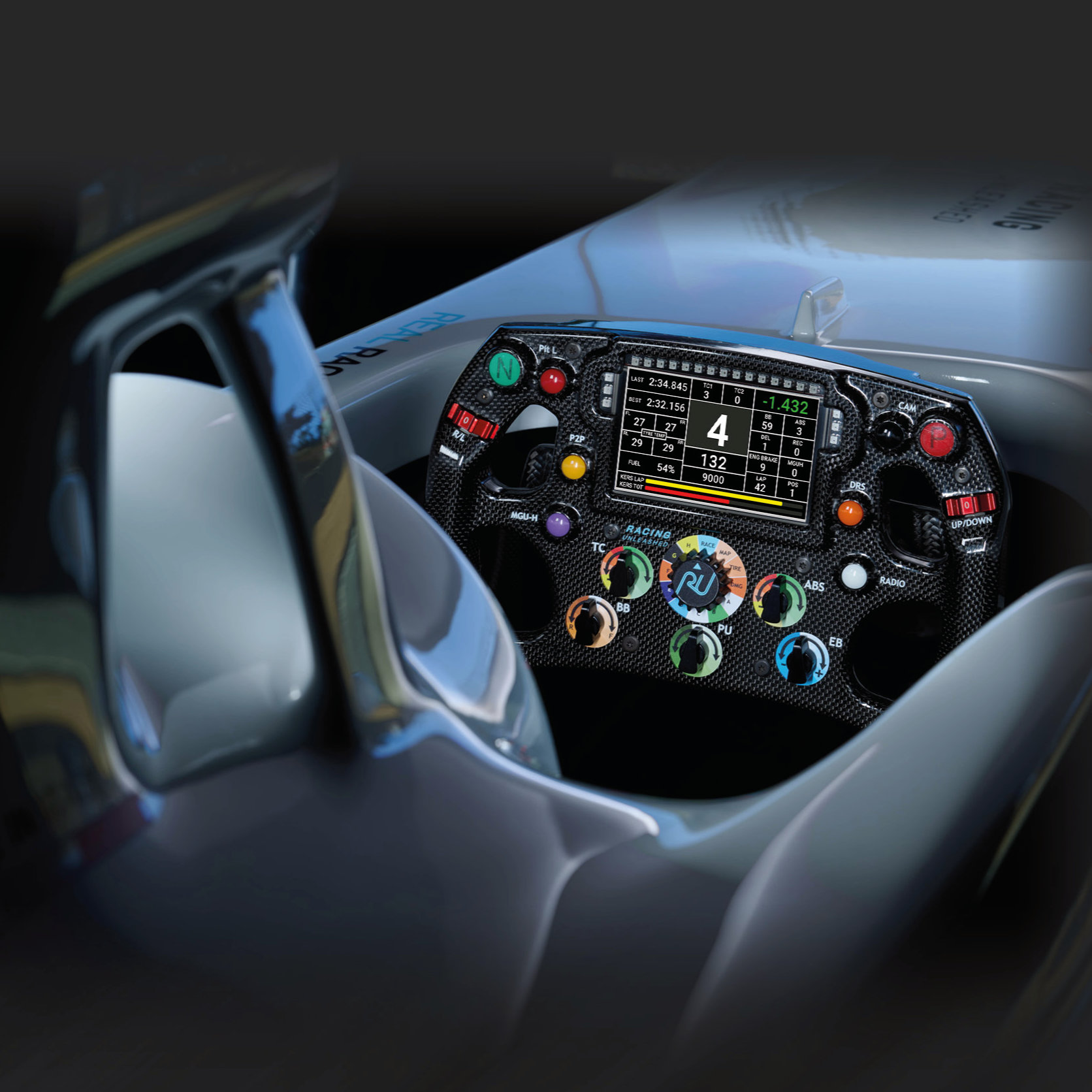

- Carbon fiber steering wheel with built-in LED display and quick release system manufactured by KRONTEC. The direct-drive motor provides steering force feedback with a maximum torque of 25Nm.

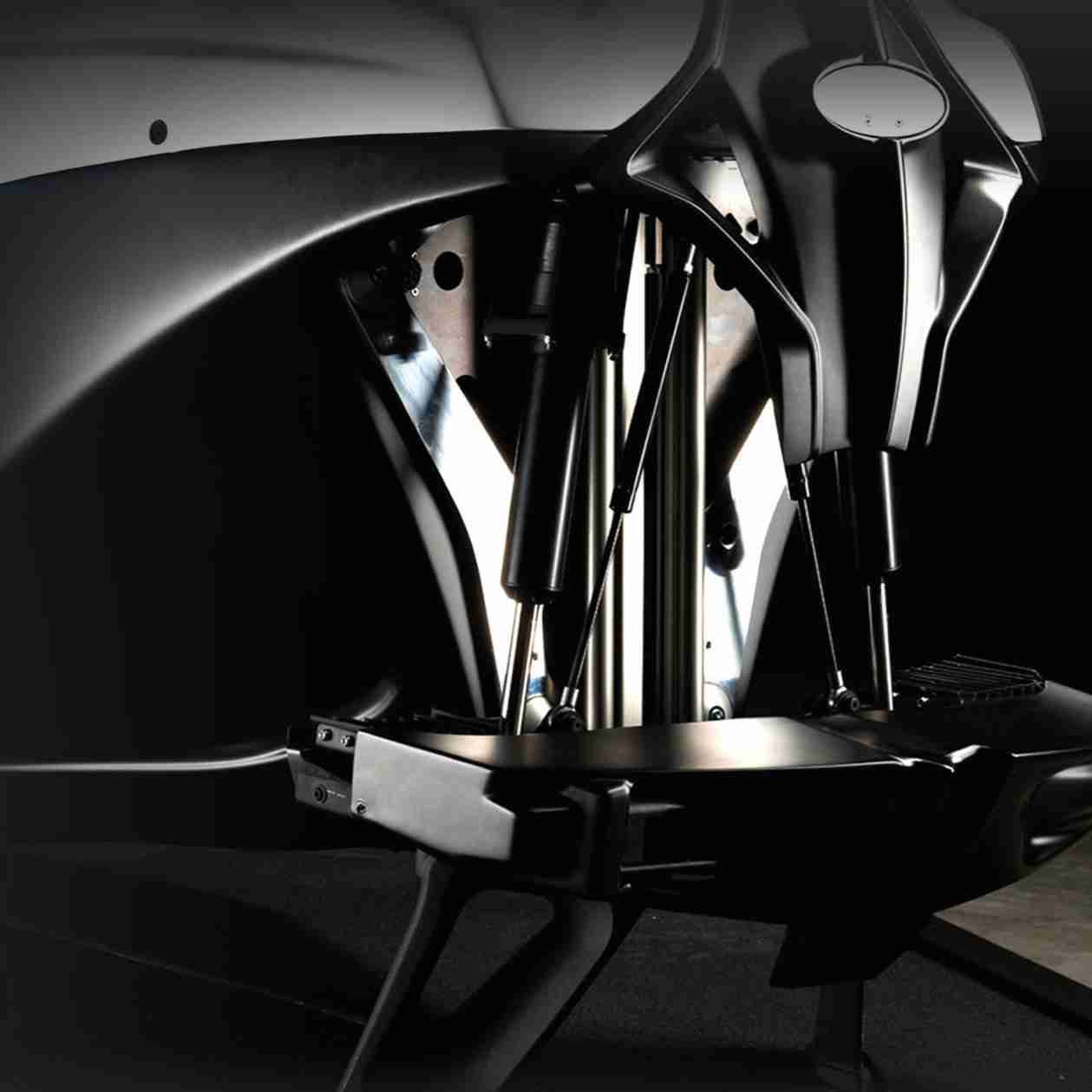

- Racing Unleashed uses a unique 3DOF motion system, which allows movements around the pitch, roll and yaw axes. This system was calibrated by a professional driver with Formula One experience. Industrial-quality electromechanical actuators, equipped with brushless motors, ensure high dynamic performance, great efficiency and extremely quiet operation.

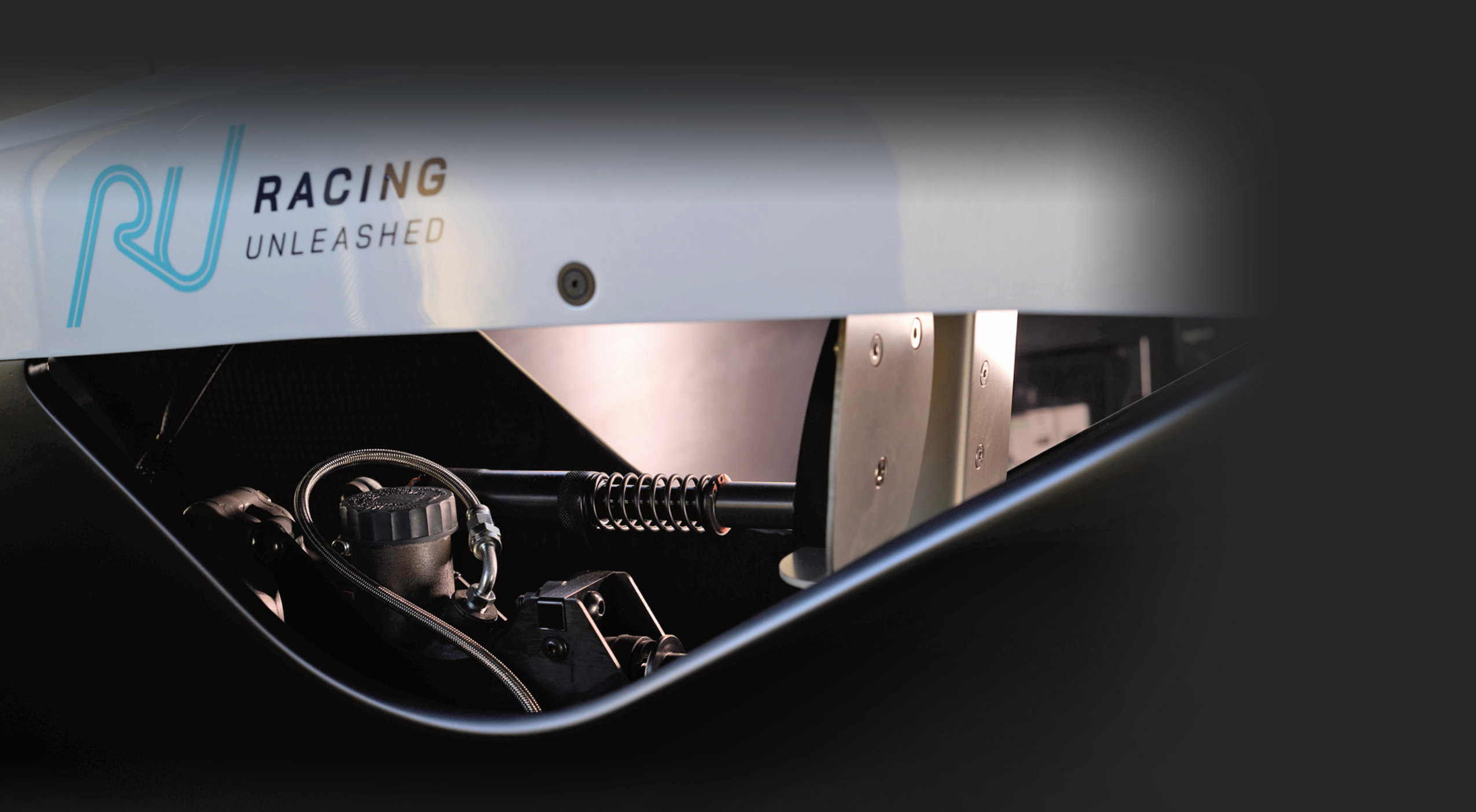

- Custom foot pedal for left-foot braking. Right foot on the accelerator. Hydraulic disc brake pedal provides realistic analog feel with high pedal stiffness.
Technical specifications.
SIMULATOR TYPE Single-seater
Dimensions Width (W) x Length (L) x Height (H) 3 x 3 x 1.4 m
Weight 250 kg
Triple DOF motion system with accelerometers on the roll axes
Display system Triple screen with 3 x (46″, HD, 60 Hz) refresh rate, Proprietary 2D/3D stereoscopic visual effects, Field of view of 8 mm/degrees, Compatible with direct broadcast VR viewer
Steering system Maximum rated torque, 20 Nm/25 Nm maximum torque
Pedals Adjustable pedal construction with hydraulic circuits, Carbon fiber brake with magnetic paddle and integrated LED display
Systems built into the seat Single -seat cockpit chair, Built-in speakers, headphones, external keyboard with touchpad and tablet
Audio interface Single positional speaker, spring-loaded accelerator pedal
Control interface Integrated cable/hardware board,
Safety belts 5-point harness with additional safety belt on request for G-force emulation
Available simulations Multiple configurations, Pro series competitions
Power requirements 220V/110V AC Single phase, power consumption 1.3kW
Software and Content
for Simulation
Racing Unleashed’s Formula simulator uses Assetto Corsa Pro as its simulation software. This software is considered the almost universal standard in sim racing, allowing the most realistic simulation of car physics. Each year, Racing Unleashed releases a virtual car model that closely follows the regulations of the current Formula One season. Each simulator includes a lifetime Assetto Corsa Pro license with a selection of circuits and cars. Virtual car liveries can be customized at the customer’s request to represent a specific car or sponsor. As an additional service, Racing Unleashed can create custom laser-scanned circuits, providing the most realistic driving feel possible.
The supply includes.

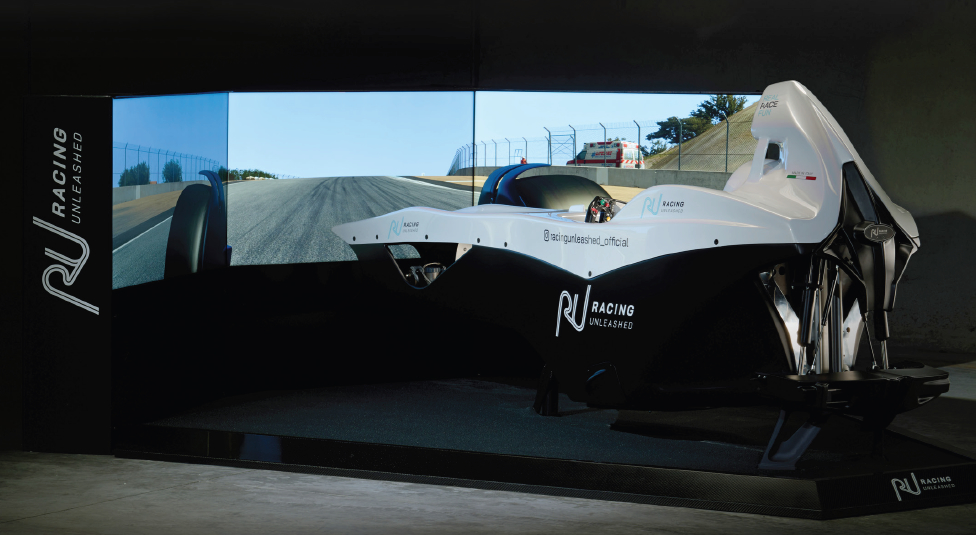

- 1 x Formula Racing Unleashed simulator type “028”, included:
- Monocoque frame, automotive grade paint (1 solid or metallic color)
- 3DOF Racing Unleashed motion system with BLDC actuators
- 3 x 46″ monitors with 120-degree field of view (1920 x 1080px each)
- PC with GeForce RTX 4080 Super GPU
- Carbon fiber racing seat with active seat belts
- Carbon fiber steering wheel with integrated LED display
- Direct-drive steering base, maximum torque 25 Nm
- 2-pedal configuration, hydraulic disc brake
- Assetto Corsa Pro software license (note: the simulator is also compatible with Assetto Corsa Competizione, rFactor2, Formula One 23, iRacing)
- Dust cover
- CB certification for sale in Europe, North America, Middle East, Asia
Not included:
- Transportation and installation (depending on customer location)
